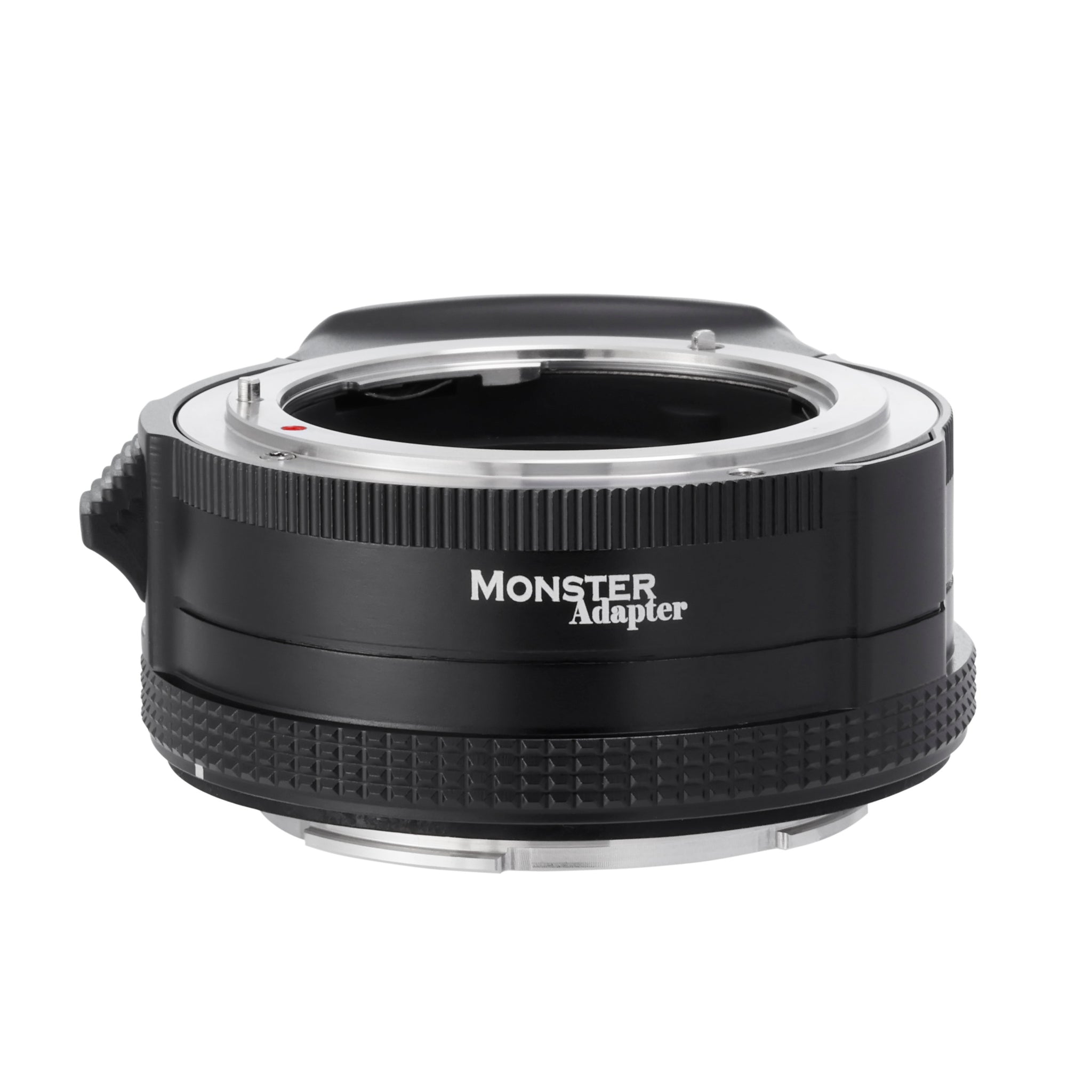

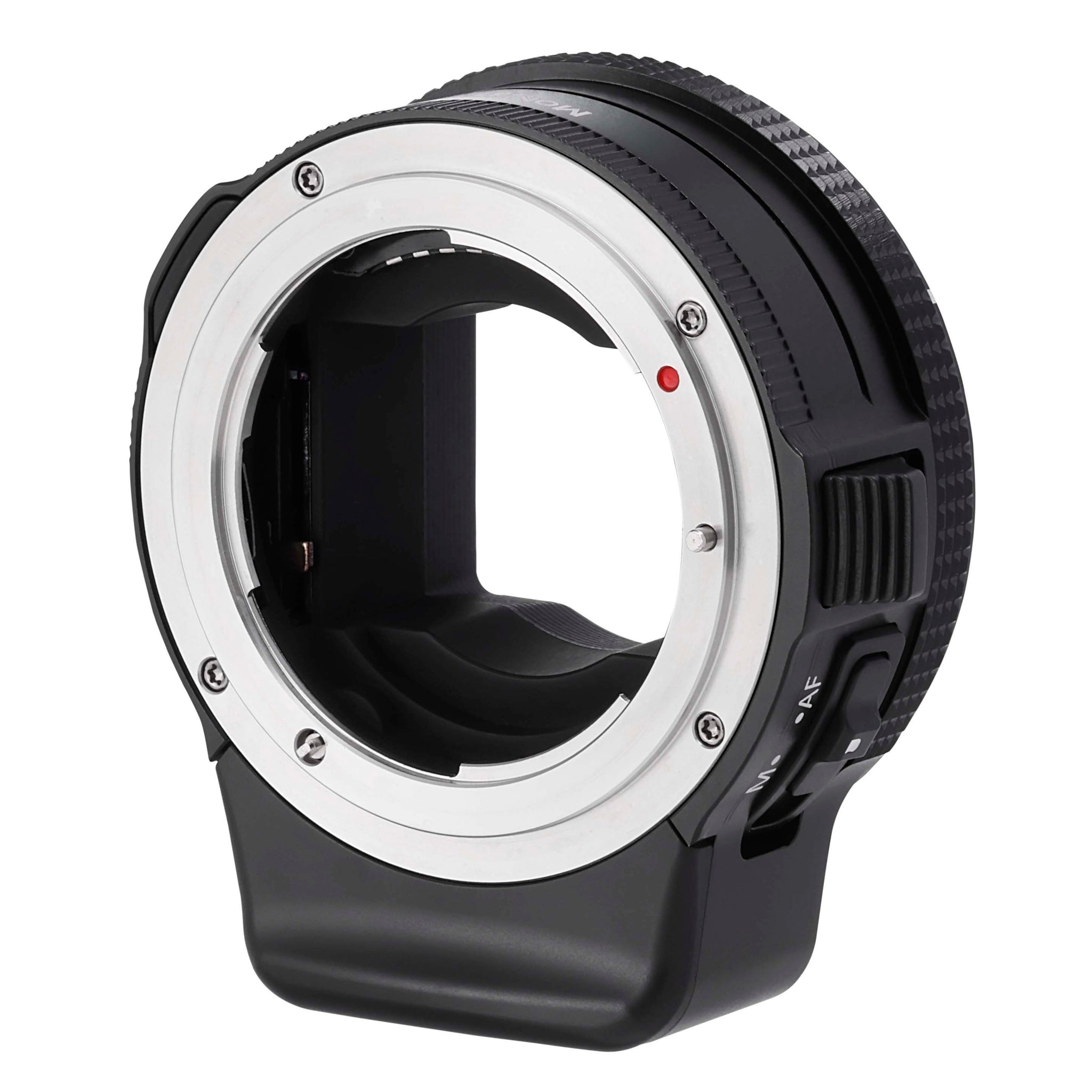

LA-FZ1 - Nikon F-mount lenses to Nikon Z-mount cameras adapter with AF motor built-in (FW v1.1)
Notice:
- LA-FZ1 will be available soon.
- The latest firmware for LA-FZ1 is v1.1. To upgrade the firmware, please download update file here and follow the instructions as described in the PDF document:
- Please beware the customs tax, if any, is not included.
Highlights:
- AF capable with Nikon legacy AF and AF-D Type screw driven lenses.
- Automatic exposure control with built-in aperture motor.
- Activate IBIS automatically if camera is capable.
- Activate ‘Focus Assist’ automatically in manual focus mode.
- Firmware upgradable via built-in USB Type-C port.
Special Notice:
The current firmware does NOT include autofocus support for AF-I, AF-S, and AF-P lenses, nor support of EMD electromagnetic aperture and lens VR. Please pay attention to future firmware update notifications, but we do not guarantee that all these features above will be supported.
Design
![]() |
Designed for Nikkor AF series lenses.The AF series Nikkor lenses, born in 1986, represent the optical essence and brilliance of that era. Now, the LA-FZ1 takes you across nearly 40 years of time, allowing you to continue using AF Nikkor lenses on Z series mirrorless cameras to capture precious moments!
|
|
Built-in Dual MotorsThe LA-FZ1 features both focusing motor and aperture motor. This is the secret to reviving AF Nikkor lenses on Nikon Z-mount cameras.
|

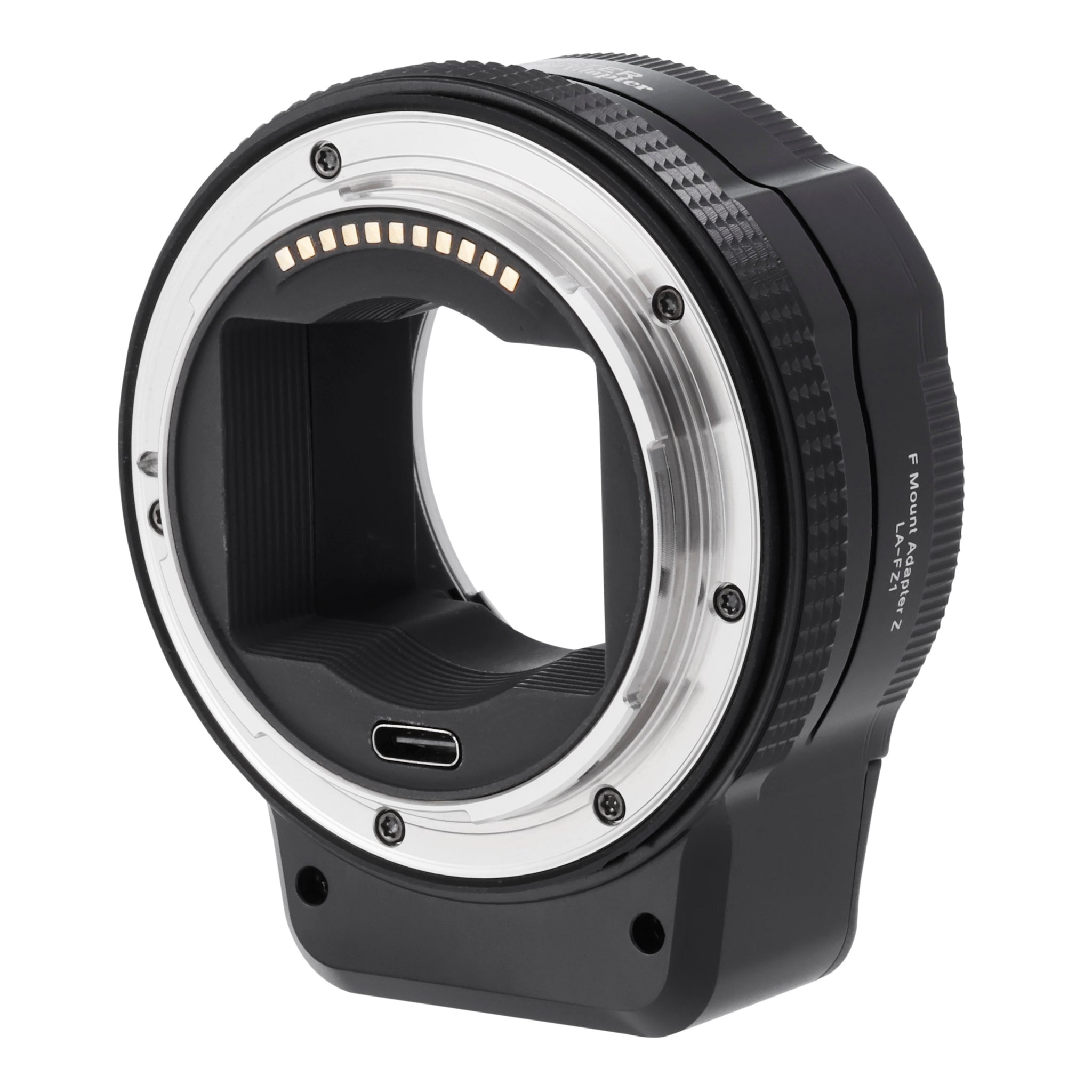

Built-in USB Type-C portLA-FZ1 has a built-in USB Type-C port designed for firmware upgrade. Just connect LA-FZ1 to a Windows PC or Mac, you can upgrade easily. |
|
Benefits
LA-FZ1 brings multiple advantages from Nikon Z cameras to Nikkor AF lenses, including hundreds of AF points across the frame, human/animal eye focusing, etc.
|
Extended Focus Point CoverageUnlike traditional SLRs, the coverage of the focus point on Z-mount cameras has been extended to almost full screen, allowing you to create more with freedom with your legacy lenses. |
Human/pet's eye trackingNow F-mount AF/AF-D lenses can also achieve tracking on the eyes of people and pets, allowing the subject to look more brilliant in the photos. |
![]() |
Shooting with StabilizationThe camera will activate IBIS automatically when LA-FZ1 attached, you can enjoy the experience that traditional SLR can never give. |
|
Supported Lenses
With firmware v1.0 to v1.1
|
Nikon AF Nikkor series Prime Lenses |
| AF DX Fisheye-Nikkor 10.5mm f/2.8G ED |
| AF Fisheye Nikkor 16mm f/2.8D |
| AF Nikkor 20mm f/2.8 |
| AF Nikkor 20mm f/2.8D |
| AF Nikkor 24mm f/2.8 |
| AF Nikkor 24mm f/2.8D |
| AF Nikkor 28mm f/1.4D |
| AF Nikkor 28mm f/2.8 |
| AF Nikkor 28mm f/2.8D |
| AF Nikkor 35mm f/2D |
| AF Nikkor 50mm f/1.4D |
| AF Nikkor 50mm f/1.8 |
| AF Nikkor 50mm f/1.8 N |
| AF Nikkor 50mm f/1.8D |
| AF Micro-Nikkor 60mm f/2.8D |
| AF Nikkor 85mm f/1.4D IF |
| AF Nikkor 85mm f/1.8D |
| AF DC-Nikkor 105mm f/2D |
| AF Micro-Nikkor 105mm f/2.8D |
| AF DC-Nikkor 135mm f/2 |
| AF DC-Nikkor 135mm f/2D |
| AF Nikkor 180mm f/2.8 IF-ED |
| AF Nikkor 180mm f/2.8D IF-ED |
| AF Micro-Nikkor 200mm f/4D IF-ED |
| AF Nikkor 300mm f/2.8 IF-ED |
| AF Nikkor 300mm f/4 IF-ED |
|
AF series Zoom Lenses |
| AF Zoom-Nikkor 18-35mm f/3.5-4.5D IF-ED |
| AF Zoom-Nikkor 20-35mm f/2.8D IF |
| AF Zoom-Nikkor 24-50mm f/3.3-4.5D |
| AF Zoom-Nikkor 24-85mm f/2.8-4D IF |
| AF Zoom-Nikkor 28-70mm f/3.5-4.5D |
| AF Zoom-Nikkor 28-80mm f/3.5-5.6D |
| AF Zoom-Nikkor 28-80mm f/3.3-5.6G |
| AF Zoom-Nikkor 28-85mm f/3.5-4.5 |
| AF Zoom-Nikkor 28-105mm f/3.5-4.5D IF |
| AF Zoom-Nikkor 35-70mm f/3.3-4.5 |
| AF Zoom-Nikkor 35-105mm f/3.5-4.5 |
| AF Zoom-Nikkor 35-135mm f/3.5-4.5 N |
| AF Zoom-Micro Nikkor 70-180mm f/4.5-5.6D ED |
| AF Nikkor 70-210mm f/4-5.6 |
| AF Nikkor 70-210mm f/4-5.6D |
| AF Zoom-Nikkor 70-300mm f/4-5.6G |
| AF Zoom-Nikkor 80-200mm f/2.8D ED |
| AF Zoom-Nikkor 80-200mm f/2.8D ED New |
| AF VR Zoom-Nikkor 80-400mm f/4.5-5.6D ED |

Specifications
Size:
Approximate 81.5mm × 76.5 × 35.2mm
Weight:
Approximate 192g (6.7oz)
- Mount adapter LA-FZ1 x 1
- Body cap (F mount) x 1
- Rear cap (Z mount) x 1
- USB Type-C cable x 1
- Set of printed documentation
Warranty:
1 Year
Manufacturer:
Shenzhen Muohuan Optics-electrical technology Co., Ltd.
Origin:
Shenzhen, China
